COMPACT
Our Compact Line offers light, compact travel trailers, perfect for adventurists escaping into the wild.
*NOTE: Due to supplier issues, some items pictured are not available and have been or will be replaced with a reasonable replacement, without notification. We apologize for this inconvenience.
Find the right model for you!
Compact Specs
Model
7ROD
10HD
10ROK
12ROK
Model
Weights
Model
Dry Hitch Weight
7ROD
63 lbs
10HD
140 lbs
10ROK
140 lbs
12ROK
180 lbs
Model
Unloaded Vehicle Weight
7ROD
500 lbs
10HD
1500 lbs
10ROK
1700 lbs
12ROK
1940 lbs
Model
Cargo Carrying Capacity
7ROD
663 lbs
10HD
840 lbs
10ROK
1440 lbs
12ROK
1240 lbs
Model
Gross Vehicle Weight Rating
7ROD
1163 lbs
10HD
2340 lbs
10ROK
3140 lbs
12ROK
3180 lbs
Model
Measurements
Model
Exterior Length (Overall)
7ROD
10' 7"
10HD
13' 2"
10ROK
13' 2"
12ROK
15' 9"
Model
Exterior Height
7ROD
4' 10.5"
10HD
6' 10"
10ROK
6' 10"
12ROK
6' 10"
Model
Exterior Box Width
7ROD
4' .5"
10HD
5' 0"
10ROK
5' 0"
12ROK
5' 0"
Model
Exterior Width (w/ Wheel Wells)
7ROD
5' 11"
10HD
6' 9"
10ROK
6' 9"
12ROK
6' 9"
Model
Interior Height (Main)
7ROD
3' 5"
10HD
46"
10ROK
46"
12ROK
46"
Model
Awning Length
7ROD
N/A
10HD
7' 6"
10ROK
7' 6"
12ROK
7' 6"
Model
Tank Capacities
Model
Fresh Water Capacity (gal)
7ROD
0
10HD
26
10ROK
26
12ROK
26
Model
Grey Water Capacity (gal)
7ROD
0
10HD
0
10ROK
0
12ROK
0
Model
Black Tank Capacity (gal)
7ROD
0
10HD
0
10ROK
0
12ROK
0
Model
Propane Unit (lbs)
7ROD
0
10HD
20
10ROK
20
12ROK
20
Model
Miscellaneous
Model
Sleeps
7ROD
2
10HD
2
10ROK
2
12ROK
2
Model
Water Heater
7ROD
N/A
10HD
N/A
10ROK
2.64
12ROK
2.64
Model
Furnace BTU
7ROD
N/A
10HD
14,300
10ROK
14,300
12ROK
14,300
Model
Tire Size
7ROD
ST185/80R13
10HD
ST235/75R15C
10ROK
ST235/75R15C
12ROK
ST235/75R15C
Compact Floorplans

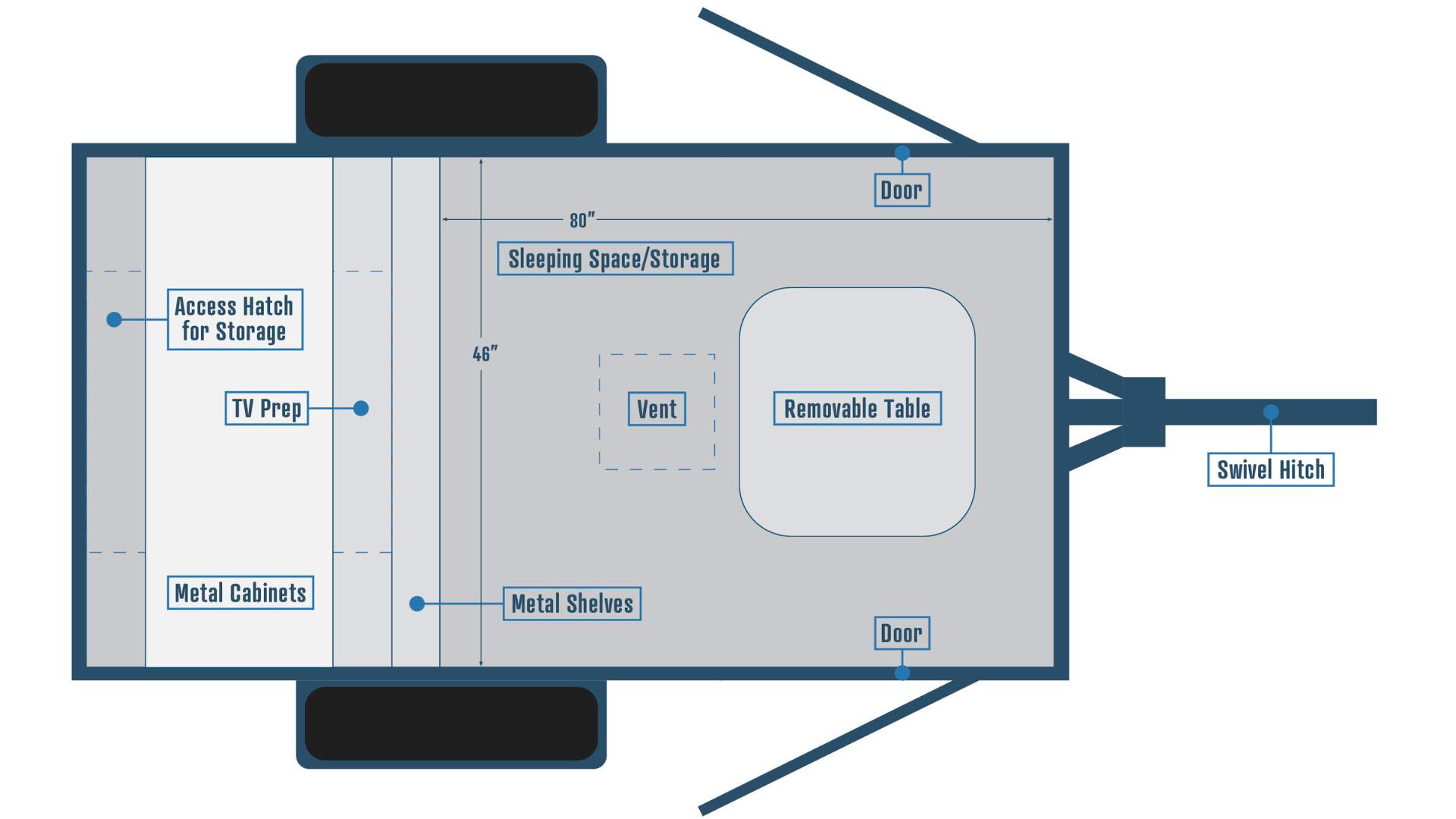

7ROD

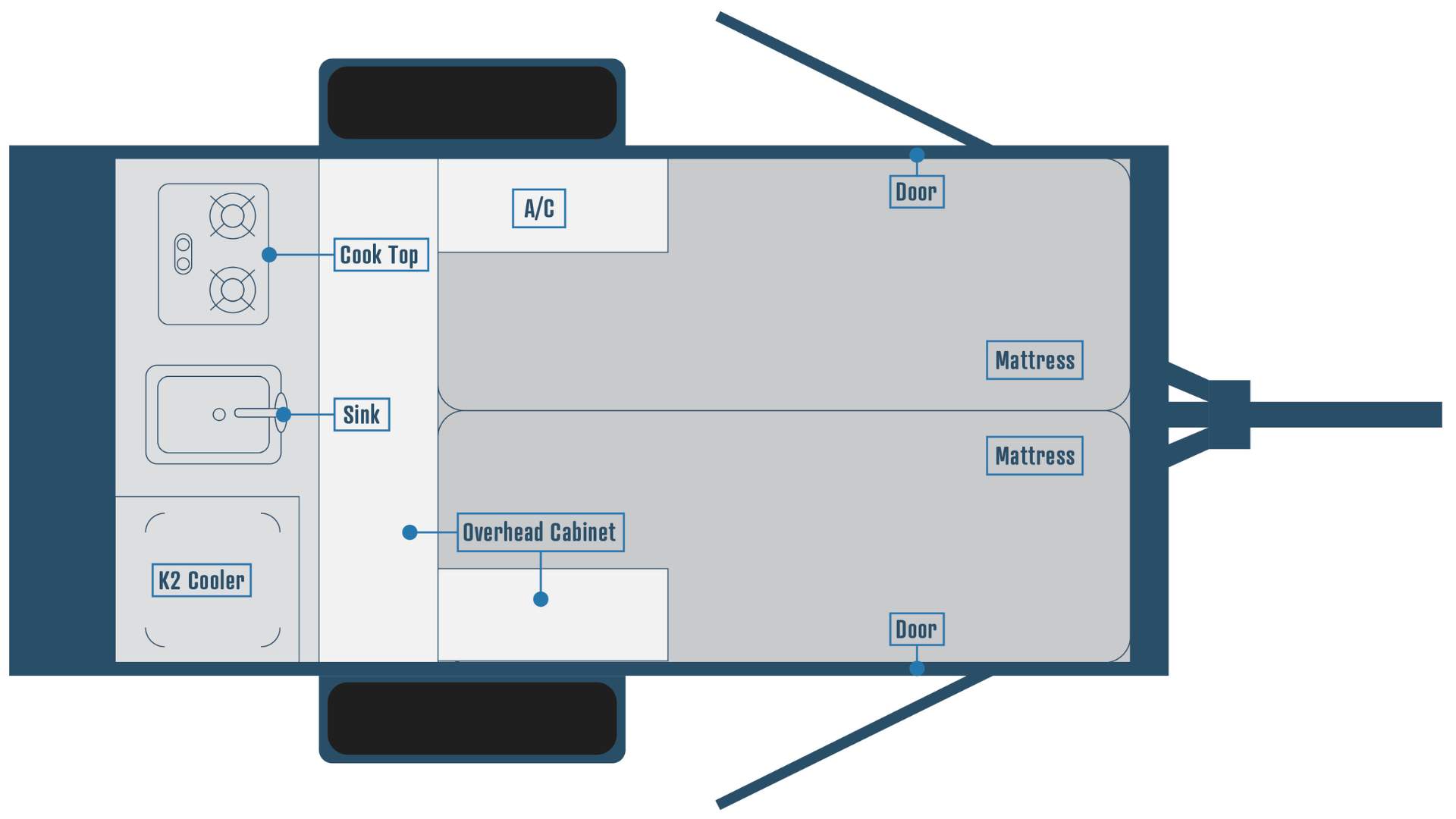

10HD

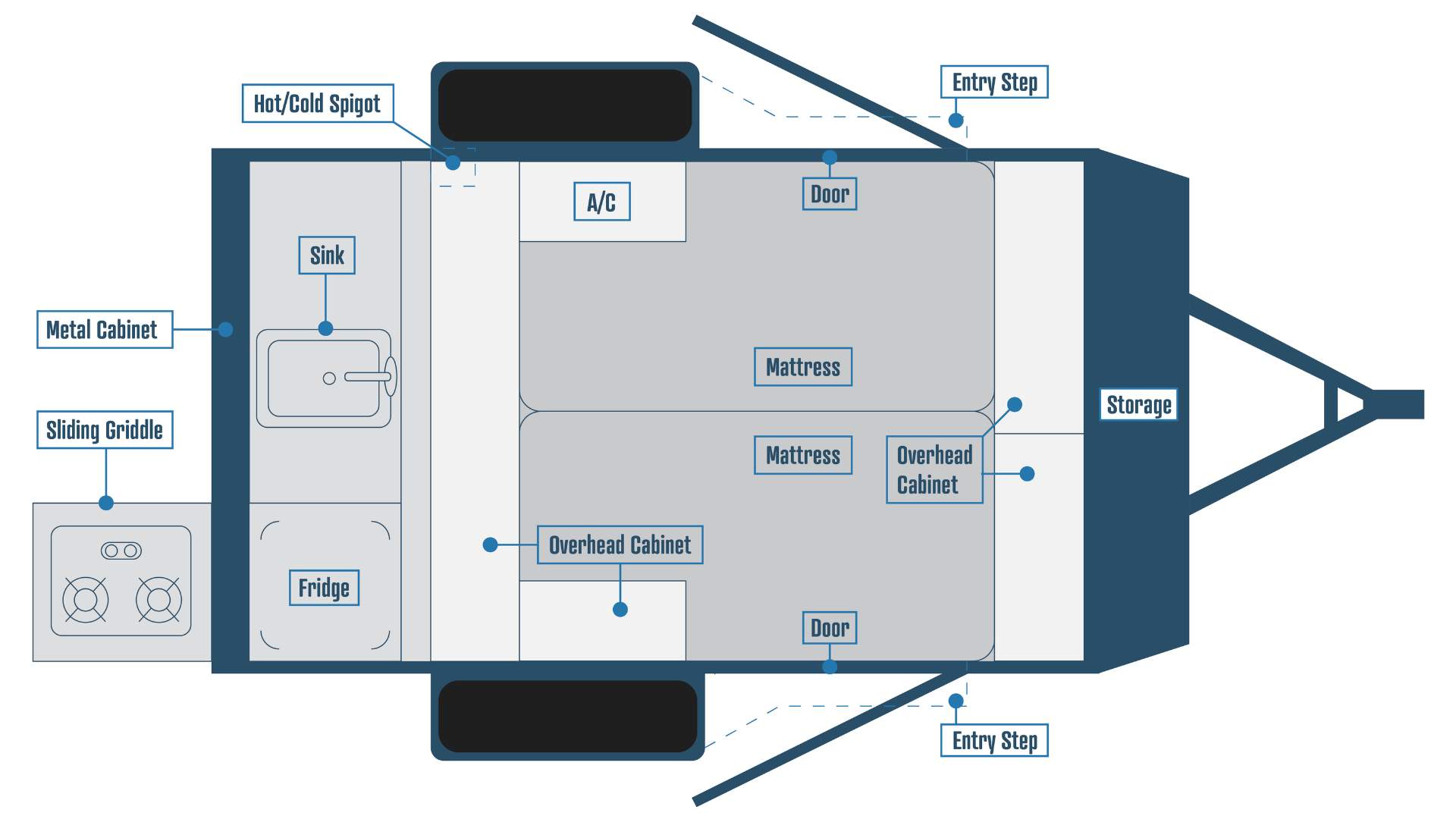

10ROK

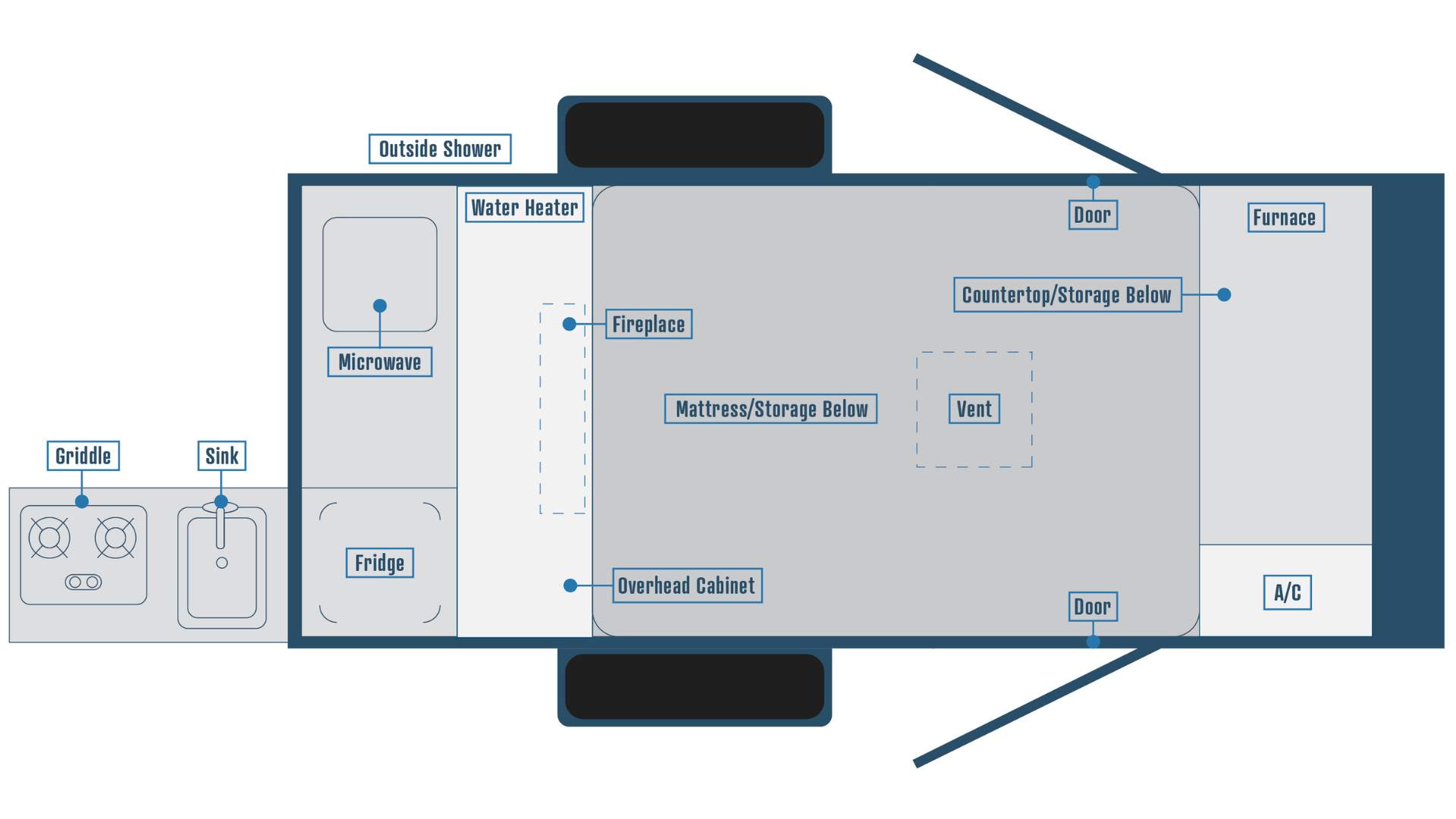

12ROK
Compact Features
7ROD | 10HD | 10ROK | 12ROK | |
---|---|---|---|---|
CHASIS & RUNNING GEAR | ||||
Norco stamped and huck-bolted, heavy-gauge steel, powder-coated mainframe w/ EZ-Extend hitch jack | X | X | X | |
Torsion-Flex 1,100-lb. independent suspension axle w/electric brakes & max-clearance design | ||||
Torsion-Flex 2,200-lb. independent suspension axle w/electric brakes & max-clearance design | X | |||
Torsion-Flex 3,000-lb. independent suspension axle w/electric brakes & max-clearance design | X | X | ||
Dual rear, heavy-duty extendable BAL stabilizing jacks w/foot pads | X | X | X | |
Over-sized, all-terrain radial tires, with alloy aluminum sport wheels | X | X | X | |
Laser cut and powder-coated mounting platform for dual battery, propane tank & generator | X | X | X | |
Under-mount, hidden spare tire w/EZ-Crank access system | X | X | X | |
Electric brake package | X | X | X | |
RV and cycle swivel hitch | X | |||
CONSTRUCTION | ||||
Heavy-gauge, powder-coated aluminum wheel fenders | X | X | X | X |
Welded, aluminum framed, main coach-body construction | X | X | X | X |
Durable white Filon™ fiberglass exterior skin with Azdel | Alum/Azdel | X | X | X |
Multi-purpose gear rack | X | X | X | |
Diamond plate running boards | X | X | X | |
Oversized, dual, lockable entry doors w/ built-in slider window | X | X | X | X |
Side-entry doorway | X | X | X | X |
Keyed alike Doors | X | X | X | X |
Awning | X | X | X | |
Heavy duty roof rack | X | X | X | |
COMFORT & UTILITIES | ||||
LED lighting, interior and exterior | X | X | X | X |
Multiple 110V, 12V & USB outlets, conveniently located throughout | X | X | X | X |
30-AMP converter w/30’ detachable, easy-store power cord | X | X | X | X |
14,300 BTU Truma Combi heater & water heater | X | X | X | |
5,000-BTU wall-mounted A/C | X | X | X | |
Prep for TV w/cable plug & multi-directional TV antenna | TV Prep | X | X | X |
Easy-plug solar prep package | X | X | X | X |
E-Z Swap propane tank | X | X | X | |
Propane quick connect | X | X | X | |
Fire extinguisher | X | X | X | X |
Propane/CO detector | X | X | X | X |
12V, 3-speed roof vent | X | X | X | X |
Oversized interior storage cabinets with netting | X | X | X | X |
Under-bed hidden, storage compartments | X | X | X | |
4-Inch, deluxe comfort, quilted bed mattresses | X | X | X | X |
Portable Toilet | X | X | X | X |
Outside shower | X | X | X | |
26 gallon fresh water tank | X | X | X | |
CULINARY | ||||
30 Qt. premium double-wall cooler | X | |||
12 V outside access refrigerator | X | X | ||
Integrated sink with 26 gallon fresh water tank and 12V water pump | X | X | X | |
Exterior kitchenette w/ 2-burner cooktop & cooler | X | |||
Slide-out kitchenette w/ Blackstone Griddle | X | |||
Exterior kitchenette w/ microwave, 12V refrigerator, & Blackstone Griddle | X | X | ||
Exterior DIY kitchen storage | X |
